Casting is a manufacturing process by which a liquid material is usually poured into a mold, which contains a hollow cavity of the desired shape, and then allowed to solidify. The solidified part is also known as a casting, which is ejected or broken out of the mold to complete the process. Casting materials are usually metals or various cold setting materials that cure after mixing two or more components together; examples are epoxy, concrete, plaster and clay. Casting is most often used for making complex shapes that would be otherwise difficult or uneconomical to make by other methods. Casting is a 6000 year old process. The oldest surviving casting is a copper frog from 3200 BC.
In this article, I will focus on the meaning of “cast” in factory production and its applications.
In this post we'll cover:
What Can Casting Achieve?
Casting is a manufacturing process that involves pouring a molten liquid material, typically metal, into a mold. The mold contains a hollow cavity of the desired shape, and once the liquid material is poured, it is allowed to cool and solidify. The solidified object, also known as a casting, is then ejected or broken out of the mold to complete the process.
The Different Types of Casting
There are several different types of casting processes, including:
- Sand casting: This is the most widely used casting process, and it involves creating a mold out of sand.
- Plaster casting: This process involves creating a mold out of plaster.
- Die casting: This is a process that involves forcing molten metal into a mold under high pressure.
- Investment casting: This process involves creating a wax pattern that is coated in ceramic and then heated to create a mold.
- Centrifugal casting: This process involves pouring molten metal into a spinning mold to create a hollow object.
- Continuous casting: This process involves pouring molten metal into a mold that moves continuously, allowing for the continuous production of castings.
The Role of Foundries in Casting
Foundries are the facilities where casting takes place. They typically have the following components:
- Crucible: This is the container that holds the molten metal.
- Mould: This is the container that holds the molten metal and creates the desired shape.
- Pouring system: This is the system that transfers the molten metal from the crucible to the mold.
- Cooling system: This is the system that cools the molten metal and allows it to solidify.
- Ejection system: This is the system that removes the casting from the mold once it has solidified.
The Fascinating History of Casting in Factory Production
• Casting is one of the oldest techniques for producing metal pieces, with evidence of its use dating back thousands of years to ancient civilizations in Asia and the Middle East.
- The oldest record of casting comes from the early Bronze Age, around 3000 BC, where copper castings were found in Turkey.
- The majority of early castings were made using the lost-wax method, which involves creating a wax model of the desired piece and then encasing it in a mold before melting the wax away and pouring molten metal into the cavity.
- Casting was a complex and technical process that required skilled artisans and craftsmen to achieve high-quality results.
- In the past, casting was usually done by hand, which required a great degree of skill and attention to detail.
The Development of Casting Techniques: From Sand Molding to Open Molding
• Over time, new techniques and methods were discovered that made casting easier and more efficient.
- One of the most significant developments in casting was the introduction of sand molding, which allowed for the production of larger and more complex pieces.
- In the middle of the first millennium BC, the Huntsman process was developed in southern Asia, which involved using a clay crucible to produce high-quality steel castings.
- In the Western world, the majority of casting was done using open molding, which involved pouring molten metal into an open mold.
- The use of alloys and metallurgy also allowed for the production of fine castings with specific properties and characteristics.
The Role of Casting in Factory Production: Mass Production and Quality Control
• With the rise of factory production in the 19th century, casting became an essential part of the manufacturing process.
- Casting allowed for the mass production of parts and components that were needed for a variety of industries, from automotive to aerospace.
- The use of molds and standardized processes also allowed for greater quality control and consistency in the production of castings.
- Today, casting remains an important part of factory production, with new techniques and technologies constantly being developed to improve efficiency and quality.
Types of Casting Processes
Casting is a common means of manufacturing that involves pouring molten metal or material into a specially designed cavity to create a desired shape. There are multiple casting processes available, each with its own unique characteristics and applications.

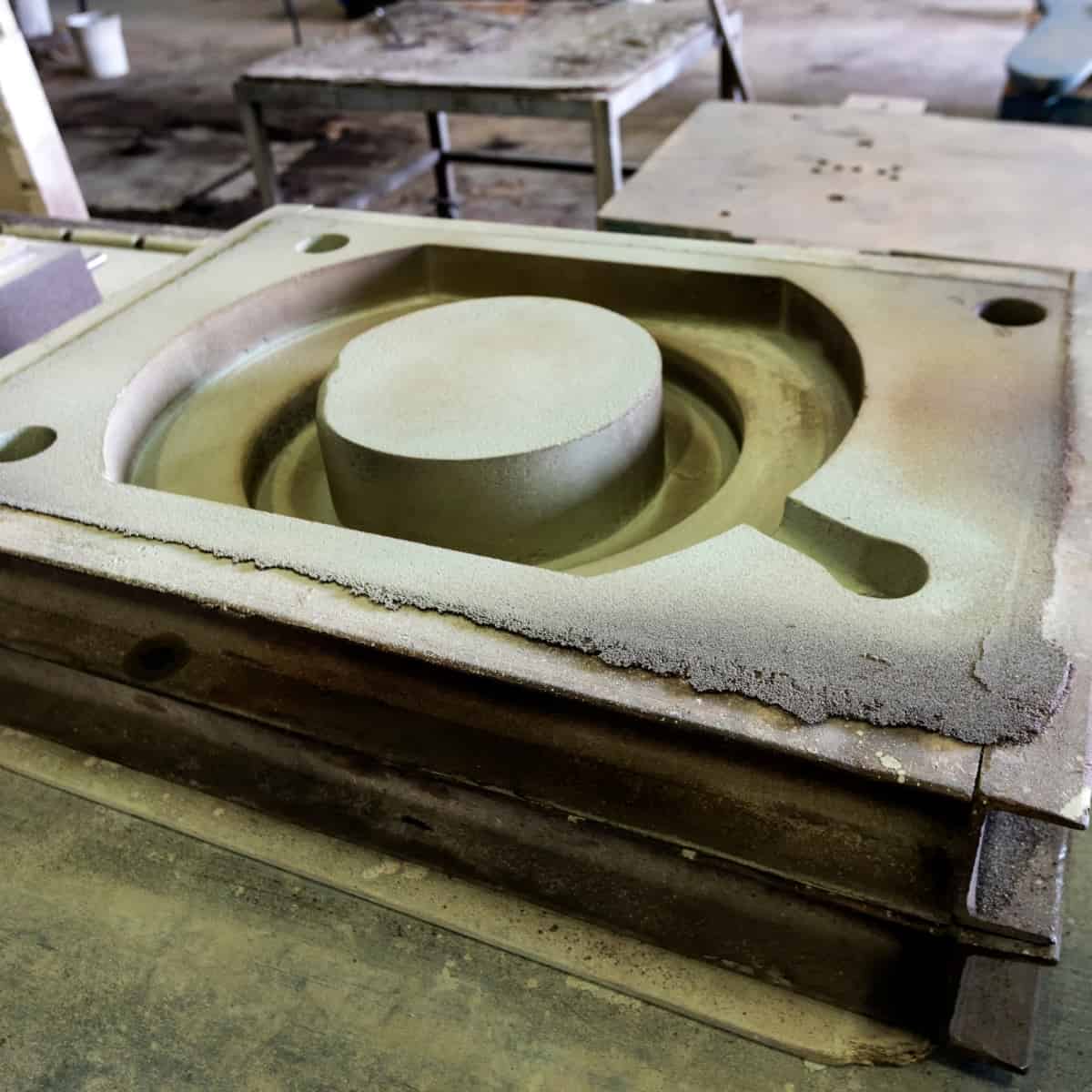

Sand Casting
Sand casting is the most common and versatile type of casting process. It involves creating a mold made of sand and then pouring molten metal into it. The resulting solidified metal is then recovered by removing the excess sand. Sand casting is often used to create large and complex pieces, such as engine blocks or outdoor seating.
Plaster Casting
Plaster casting is a process that involves pouring molten metal into a plaster mold. The mold is designed to be hollow, with runners and risers to fill the mold and allow for solidification. Once the metal has solidified, the plaster mold is broken away to reveal the resulting casting. Plaster casting is often used for small and intricate pieces, such as jewelry or simulation models.
Die Casting
Die casting is a process that involves injecting molten metal into a mold under high pressure. The mold is designed to be rigid and durable, often made of steel. Once the metal has solidified, the mold is opened and the resulting casting is removed. Die casting is often used for mass production of small and complex pieces, such as automotive parts or electronic components.
Investment Casting
Investment casting, also known as lost-wax casting, is a process that involves creating a wax pattern of the desired shape. The wax pattern is then coated in a ceramic shell and heated to remove the wax and harden the shell. Molten metal is then poured into the shell and allowed to solidify. Once the shell is removed, the resulting casting is revealed. Investment casting is often used for creating complex and detailed pieces, such as jewelry or aerospace components.
Conclusion
So, casting is a manufacturing process that involves pouring molten material into a mold to create a solidified object.
It’s used in everything from jewelry to engines, and it’s been used for thousands of years. So, don’t be afraid to ask your factory production team about casting!
